CNC HighSpeed engravers

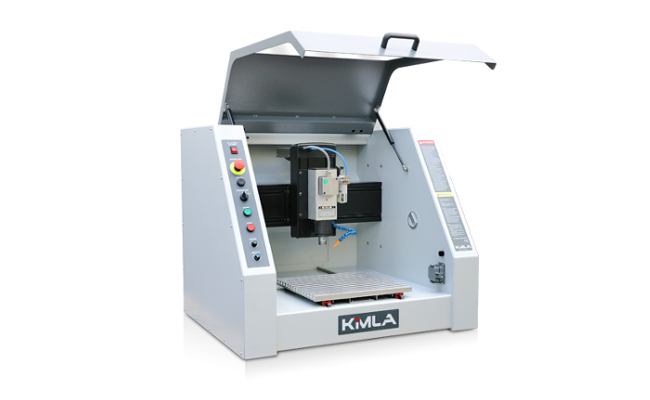

Bench engraving machine in High Speed version with a parallel configuration with a movable table. The enclosed design makes the machine quieter and easy to keep it clean, and its small size allows to place it in office rooms. It is perfect for engraving in wax, laminate, plexiglass and plastic. It works very well in aluminum and ferrous metals, and it is excellent for performing dies for hot-stamping and stamps. By combining the technology of parallel kinematics with the excellent control of the dynamic analysis of vectors we have attained efficiencies frequently exceeding applicable performing standards. The electro-spindle with a maximum speed of 24,000 rpm, and a system of automatic correction of the tool length allows for extremely efficient operation while maintaining the excellent quality of treatment.

5D CNC HighSpeed engravers

Table 5-axis engraving machine. The machine, designed basically for prosthetics and gold smithery, allows to perform five-axis models of wax and zirconium oxides. Being completely cased, the machine is ideal for clean office rooms. What is more, the casing significantly reduces the noise from the spindle. By combining the technology of parallel kinematics with excellent control of the dynamic analysis of vectors we have attained efficiencies frequently exceeding binding performance standards. The high-performance induction electrospindle with 60,000 rpm and automatic tool changing (ATC) with a toolstorage allows for extremely efficient operation while maintaining the excellent quality of treatment.



b

Workspace dimensions [mm]

Lenght 375
Width 400
Z axis range 130
Spindles 24 000 rpm./min. 1 kW, 1.5 kW, 2.1 kW
60 000 rpm./min. 0.8 kW, 0.97 kW, 2.1 kW
Control system AC High Speed Digital Servo Drives
Table type T-slot table
Vacuum table
Hybrid table
Special
Automatic correction of the tool length
additional options
Cooling Automatic
Air + Oil
Heads Foil cutting knife
Writing
Poruing
Scanner Touch
Laser
Automatic Tool Changing (ATC) with no change, tools storage
Rotary axis "B" on table
"A" and "B" on table
Host computer
video play
Brass dies milling on Kimla CNC Linear Engraving Machine
video play
Dental engraving
