Five axis CNC milling machines

Photos gallery

Movies gallery

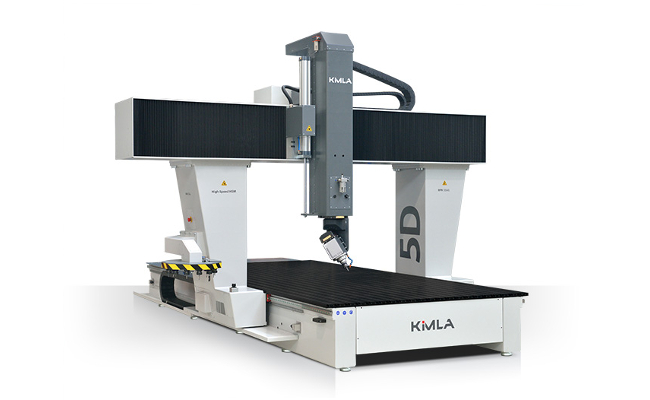

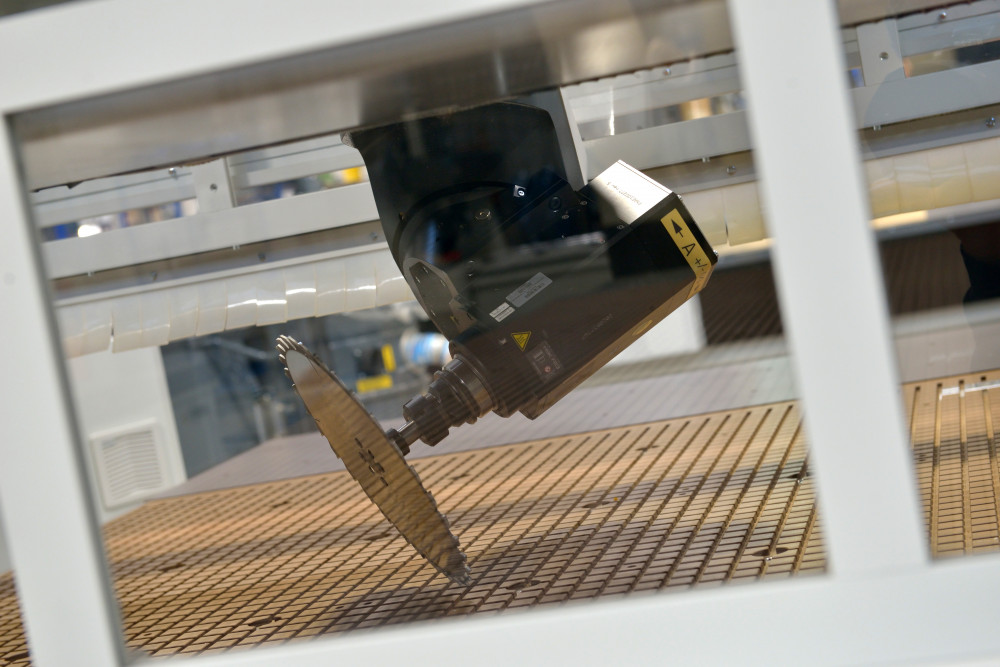

5 axis milling machine is a machine used for large-size details machining. Most often, these are casting, thermo-forming and laminate dies. These machines may be executed in a very wide range of work areas. They are equipped with a high class control system, allowing for simultaneous interpolation of all axes, with projection of work speed onto the front of a tool. Five-axis CNC milling machines are used also for execution of production machining after thermo-forming or lamination. Finishing machinings, cutting feedheads and shape machinings may be carried out on the basis of shapes scanned with the use of touch head.

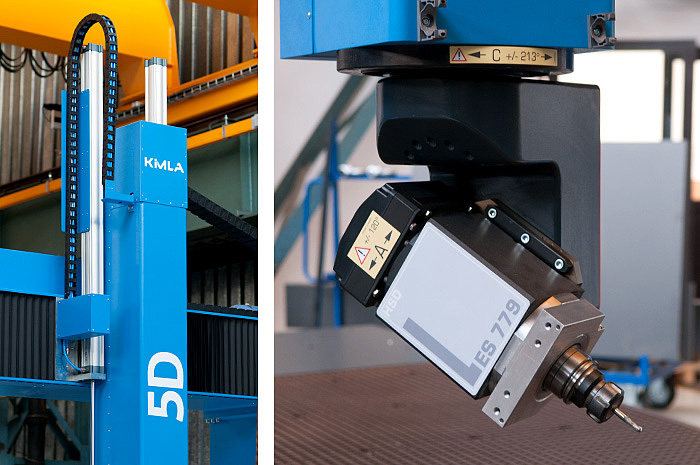

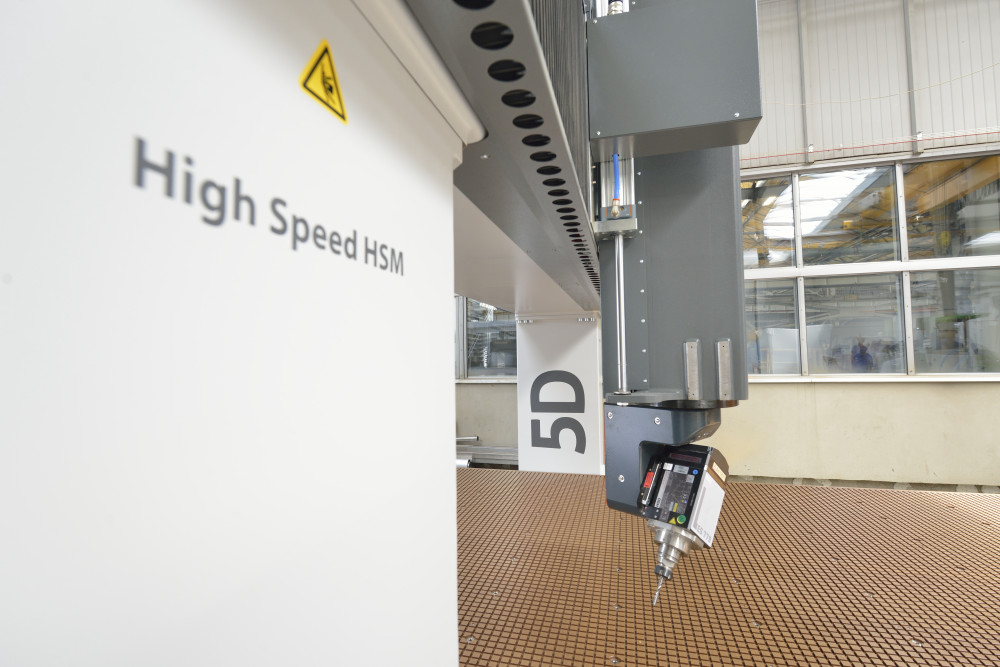

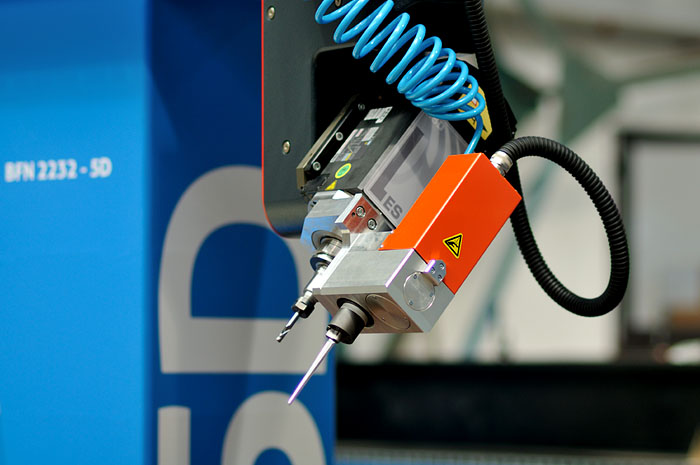

This facilitates finishing work without the need for usage of expensive CAM software. The five-axis machines are equipped with 5-30kW spindles. The heads of the Kimla 5 axis CNC milling machines are built on the basis of no backlash harmonic gears from German company, Harmonie Drive. It provides for a high rigidity, at the same time retaining very high effectiveness and dynamics of movement.

Owing to the employment of an innovative control system, the performance of the Kimla 5 axis CNC milling machines drastically exceeds similar solutions offered by other manufacturers.

basic options
Working area dimensions [mm] Lenght 1500, 2000, 2100, 2500, 2600, 3000, 3100, 4000, 4100, 5000, 5100 .. 24000*
Width 1500, 2100, 2600, 3100 .. 5000*
Z axis range [mm] 700, 800, 900, 1000 ... 2000
A axis range [deegrees] ± 130°
C axis range [deegrees] ± 213°

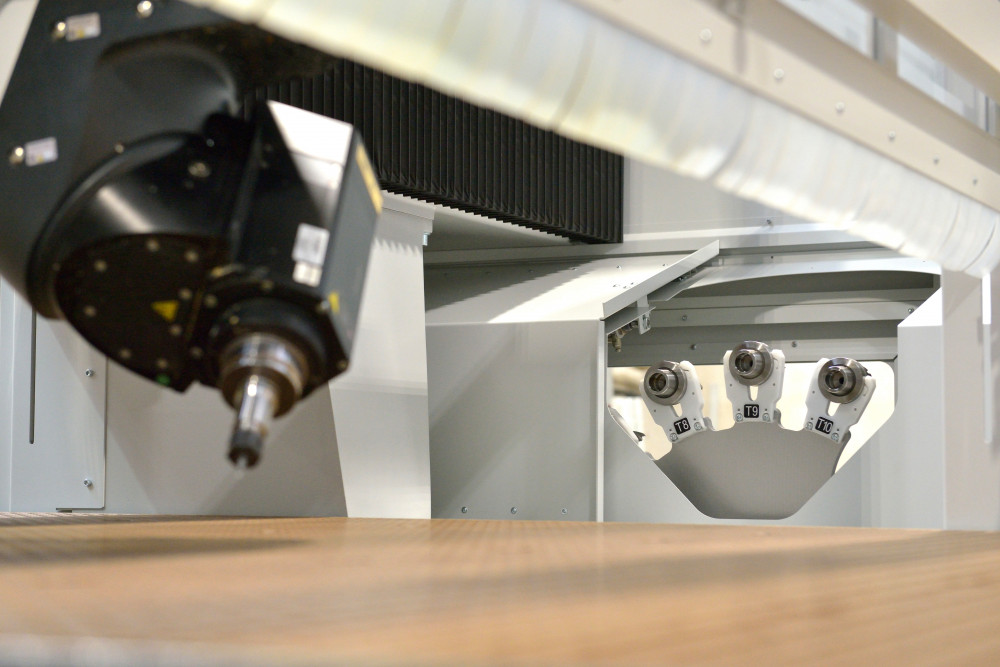

Spindles 18 000 rpm./min. 6kW, 7.5kW, 12kW, 16kW, 18kW, 25kW
24 000 rpm./min. 6kW, 8kW, 9kW, 12kW, 13kW, 16kW, 18kW
50 000 rpm./min. 2.4kW, 4.8kW
Cooling Air, Refrigerating unit
Control system Digital AC Servo Drives

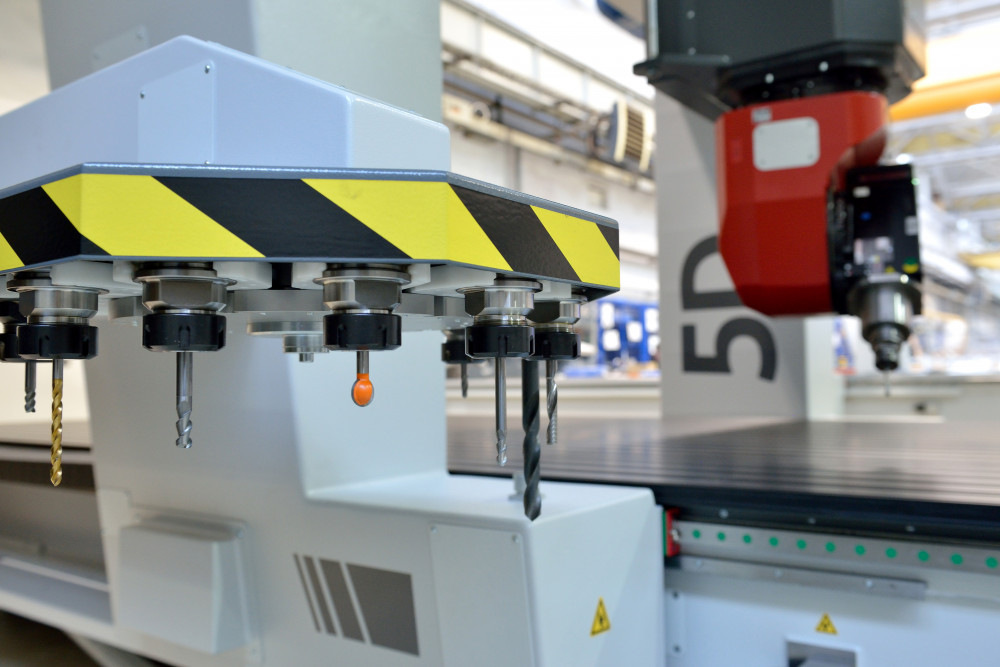

Automatic Tool Changing (ATC) Linear storage
Rotating storage
Table type T-slot table
Vacuum table
Hybrid table
Automatic correction of the tool lenght
Control cabinet with control computer
video play

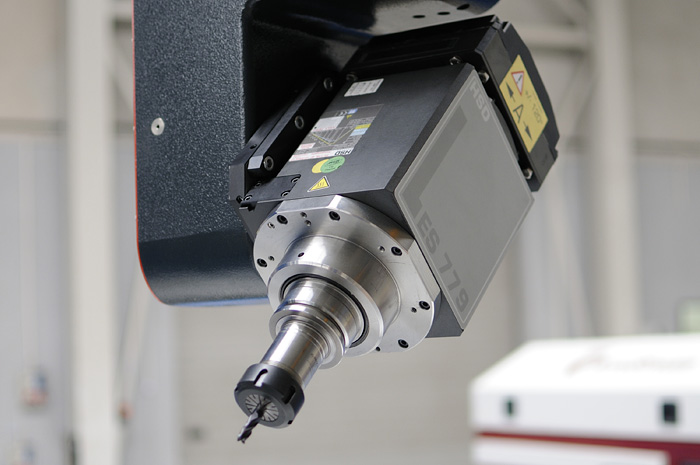

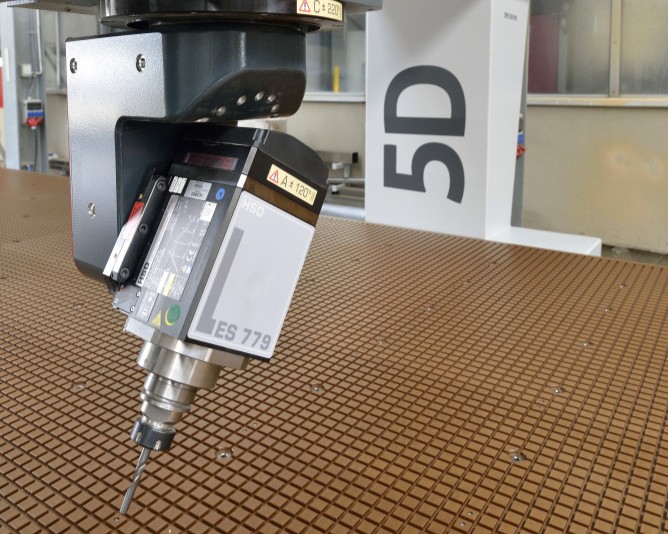

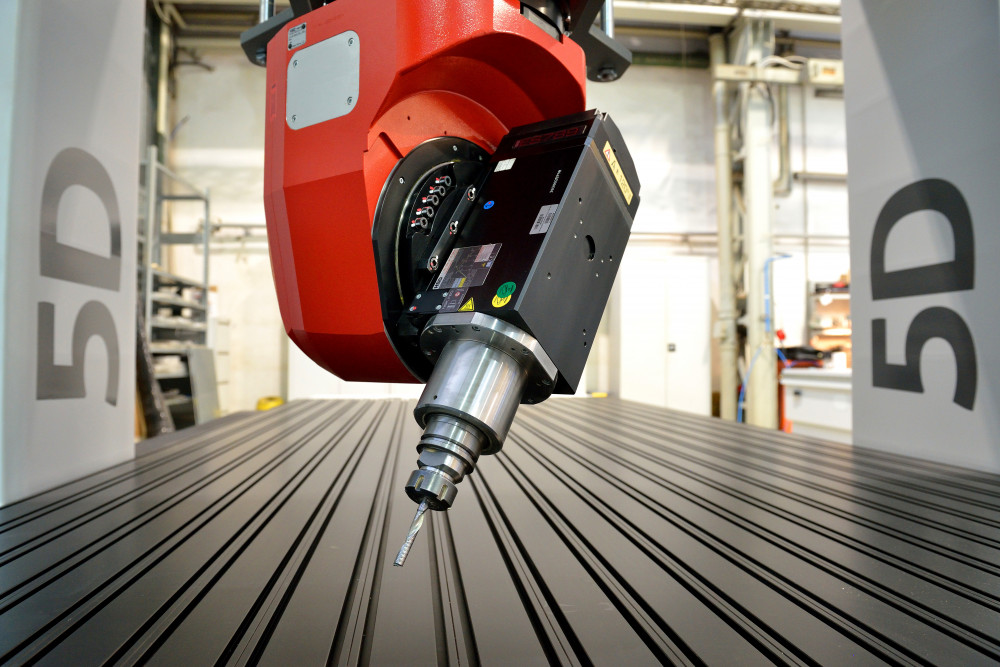

5Axis Cardanic Head
video play
5 axis milling machine symultanous interpolation
video play
5-axis milling machine for models
video play
5D - truncation after thermoforming
video play
5-axis CNC milling machine for models
